Systolic Binary Neural Network Accelerator (V2)
β Selected for Fabrication β Competitive Group Submission
An 8-neuron BNN inference chip redesigned from the ground up for Tiny Tapeout manufacture β fitting a 1Γ1 tile footprint while matching the architecture of real AI accelerators. XNOR-popcount replaces the AND-threshold model of V1, systolic dataflow reuses hardware across 8 cycles, and placement density was tuned to 60% for successful routing through the OpenLane toolchain.

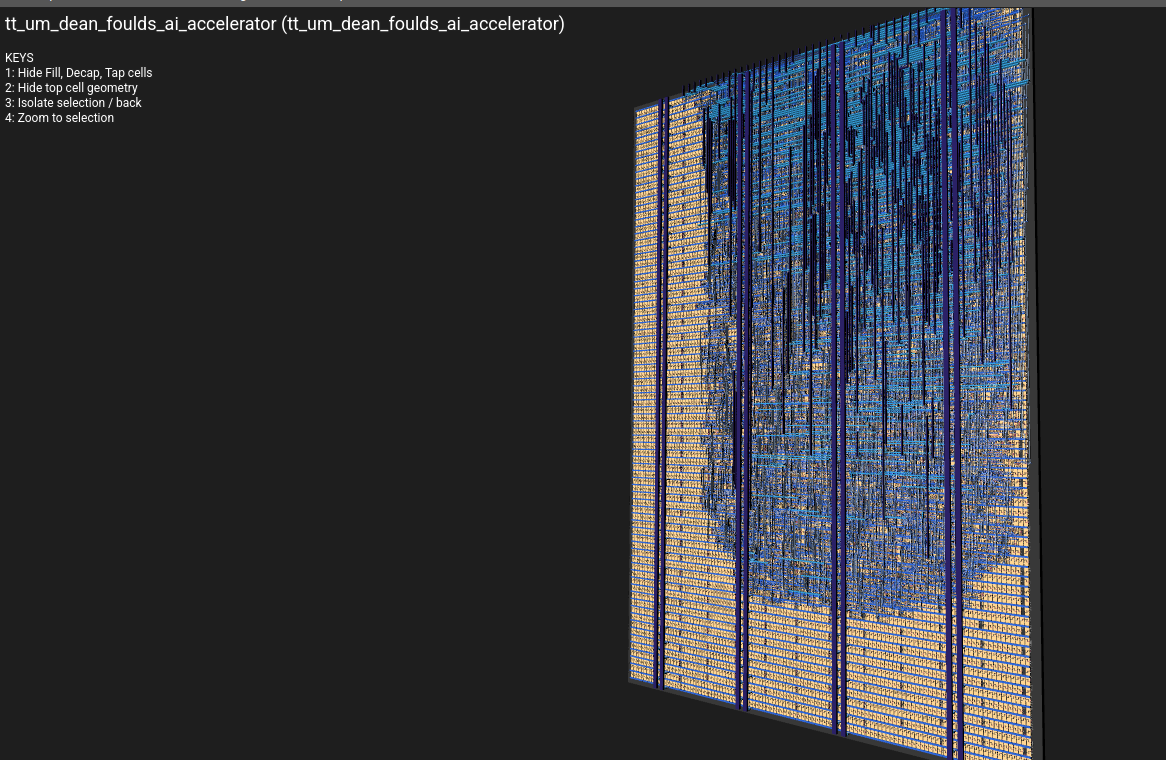

Silicon Layout
Key Upgrades from V1
| Property | V1 | V2 |
|---|---|---|
| Neurons | 16 | 8 |
| Tile size | 1Γ1 | 1Γ1 |
| Dot product | AND | XNOR |
| Compute style | Fully parallel | Systolic (1 bit/cycle) |
| Latency | 1 clock cycle | 8 clock cycles |
| Feature input | Raw 8 bits | Expanded (XOR/AND features) |
| Decision | sum >= threshold | sum + bias >= 0 |
| Threshold/bias | 4-bit unsigned | 5-bit signed |
| Popcount | Linear chain | Balanced binary tree |
| Placement density | β | 60% (routing-clean) |
What Changed and Why
AND β XNOR β the most important change. AND counts features that are present AND important. XNOR measures bit-level similarity between the weight pattern and the input β a weight of 0 now means βI expect this feature to be absent.β This is the standard computation in virtually all BNN research hardware, including chips from IBM and Microsoft Research.
Parallel β Systolic engine β V1 had 128 AND gates firing at once. V2 reuses one set of 16 XNOR gates across 8 cycles. Same result, a fraction of the silicon. Trade time for area β the same tradeoff that drives every serious AI accelerator.
Threshold β Signed bias β V2 uses sum + bias >= 0 instead of sum >= threshold. Mathematically equivalent, but bias is the form output by PyTorch, TensorFlow, and JAX β trained weights load directly with no conversion.
Hardware feature expansion β a small combinational block generates 8 derived features from raw inputs including XOR and AND combinations, allowing the neuron to represent simple non-linear relationships at minimal silicon cost.
Balanced popcount tree β V1 summed bits in a linear chain (7 levels deep). V2 uses a balanced binary tree (3 levels deep), cutting the critical timing path and enabling higher clock frequencies.
The Science
This chip connects three pillars of AI hardware history:
- McCulloch & Pitts (1943) β the threshold logic neuron that started neural networks
- Rosenblattβs Perceptron (1957) β the first learning machine, whose weight update rule the training script implements directly
- H.T. Kungβs Systolic Array (1978) β the rhythmic data-flow architecture that now underlies Googleβs TPU and NVIDIAβs Tensor Cores
Binary Neural Networks (Courbariaux & Bengio, 2016) replace 32-bit floating point with 1-bit XNOR+popcount β 32Γ energy reduction, 16Γ area reduction β ideal for edge AI in sensors, cameras, and microcontrollers.
Practical Use β Anomaly Detection with Raspberry Pi
At 10 MHz the chip classifies over 1 million sensor readings per second, entirely in hardware. Train weights offline in Python using the Rosenblatt perceptron learning rule, load them once at startup, then run inference continuously. All 8 neurons detect different fault signatures simultaneously, producing an 8-bit classification vector per inference pass.
